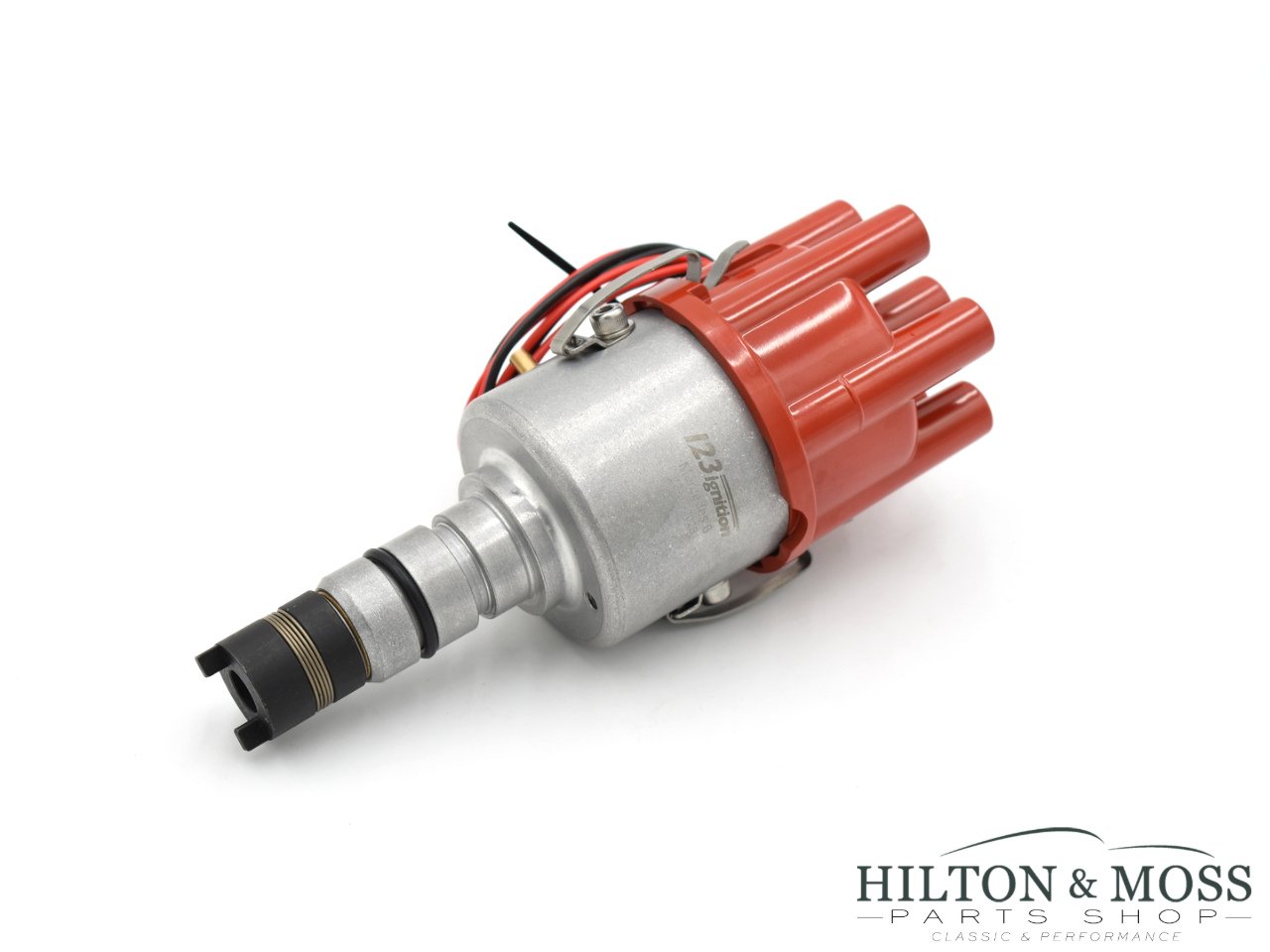

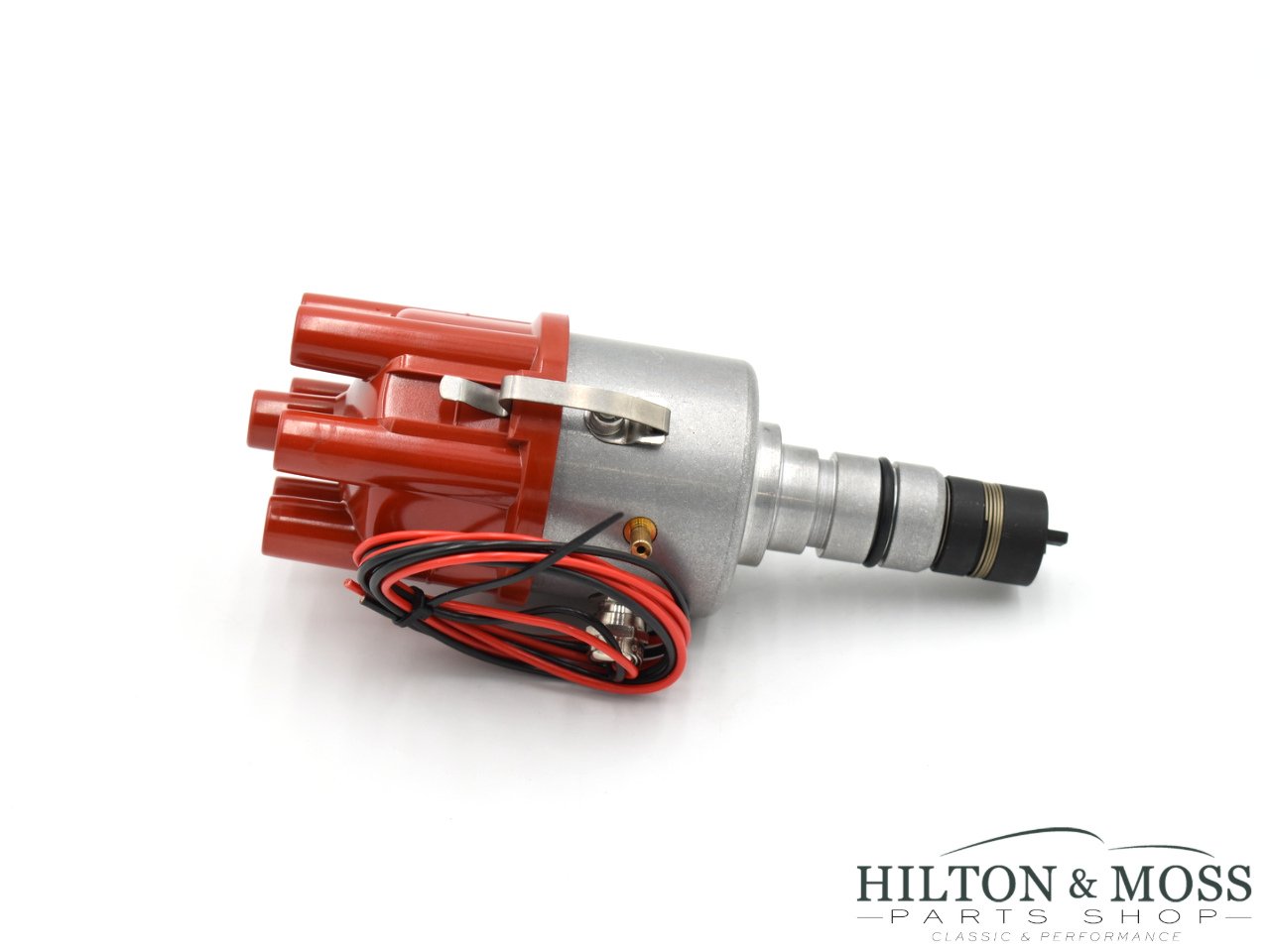

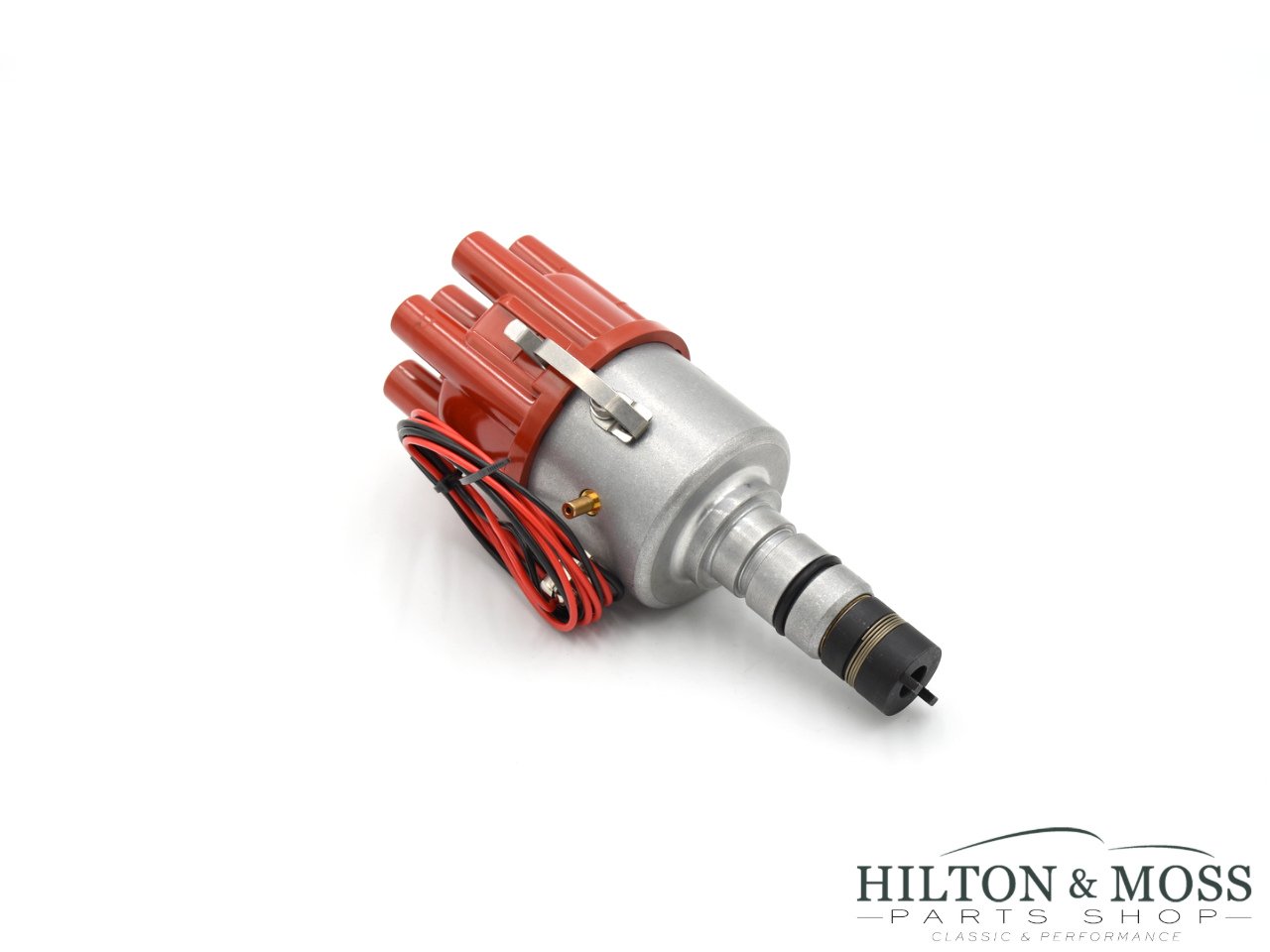

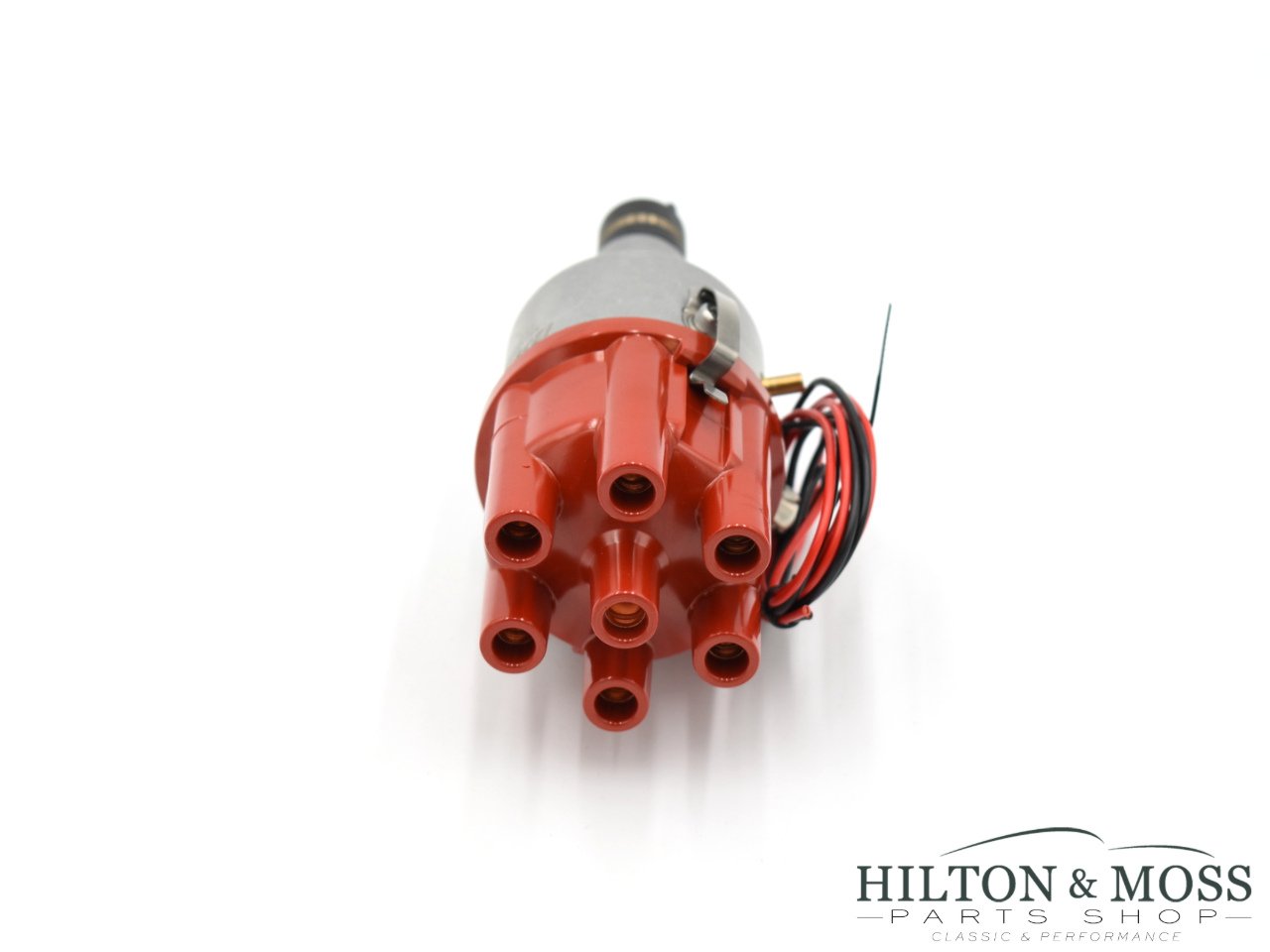

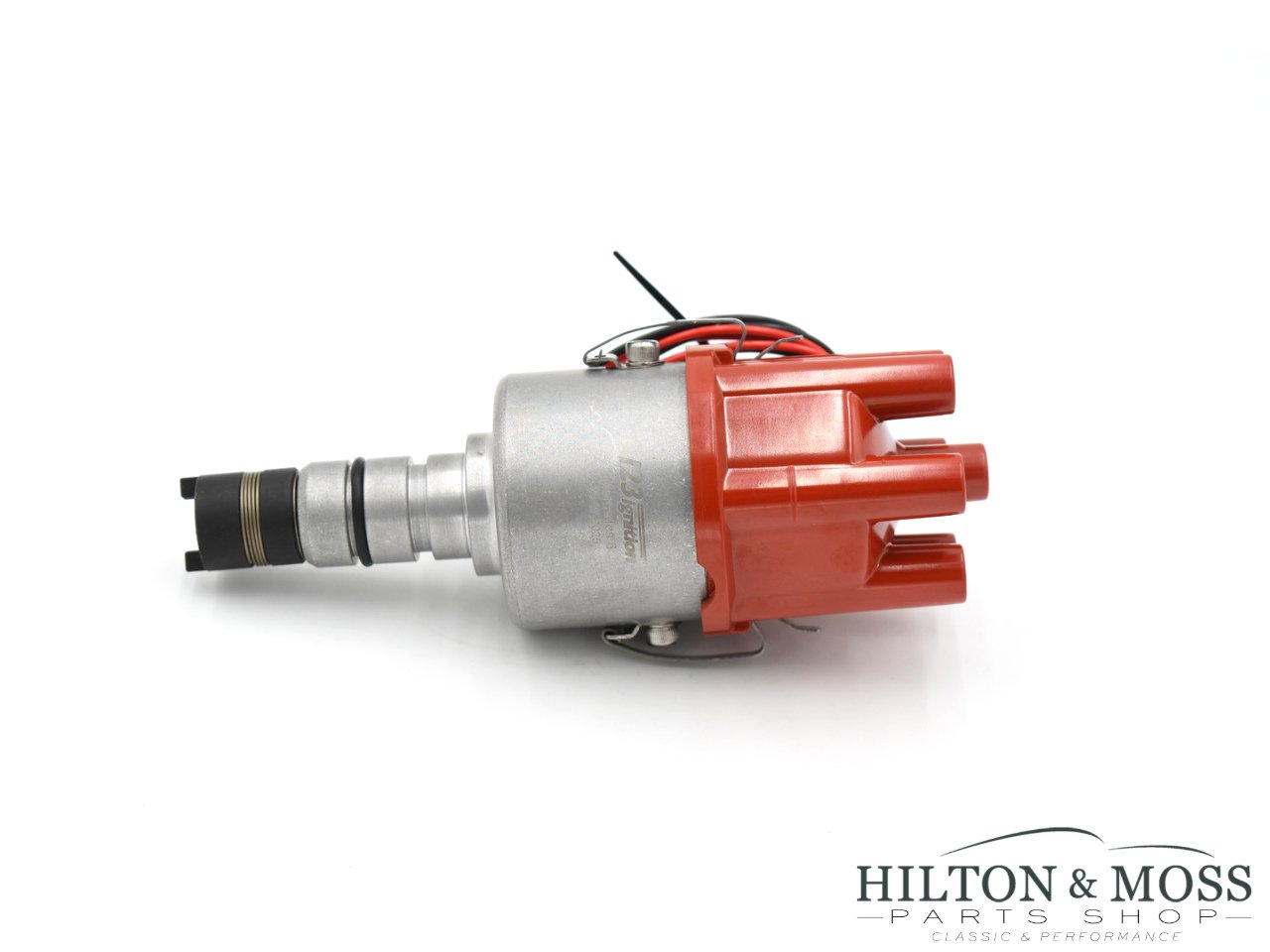

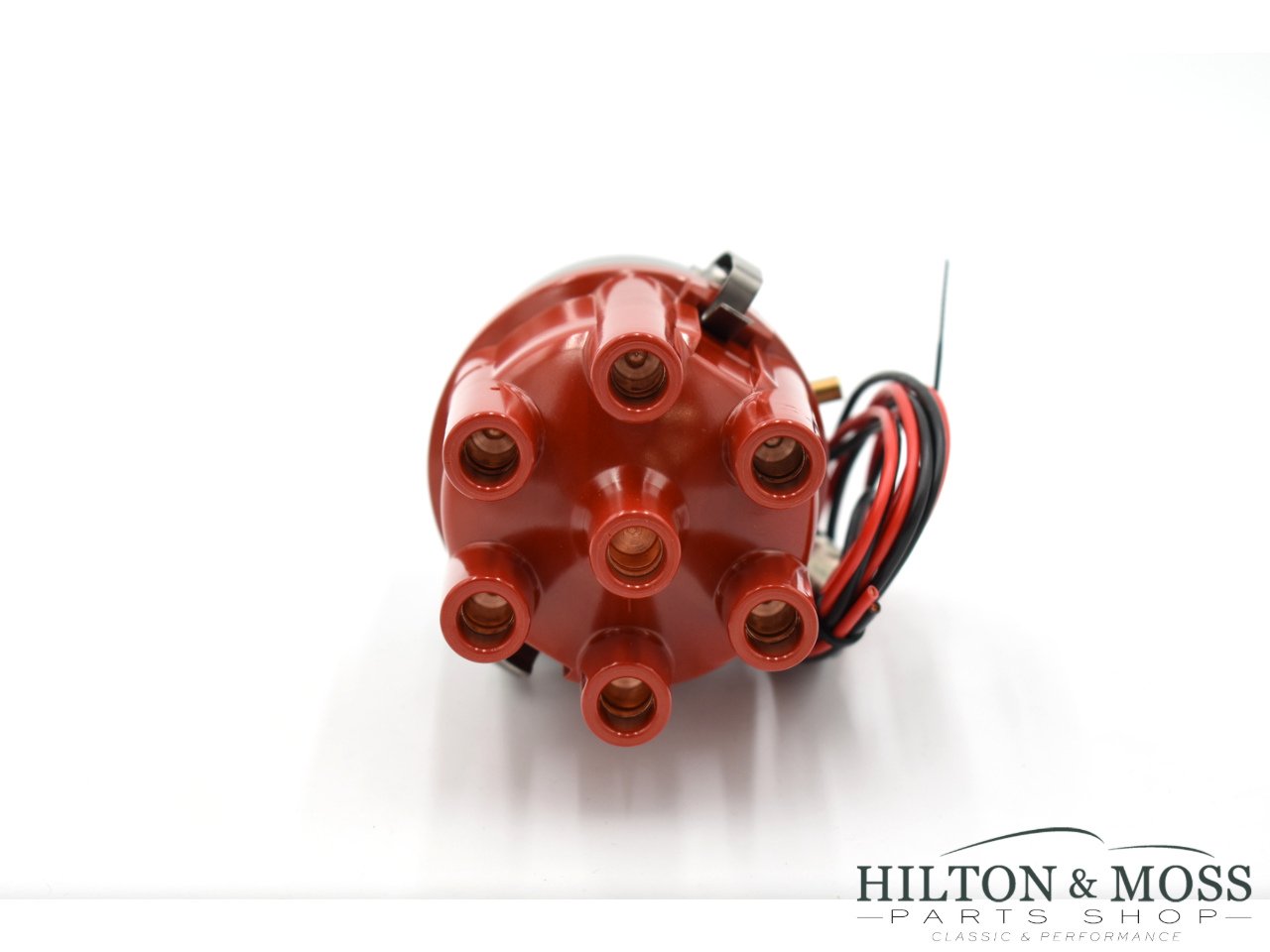

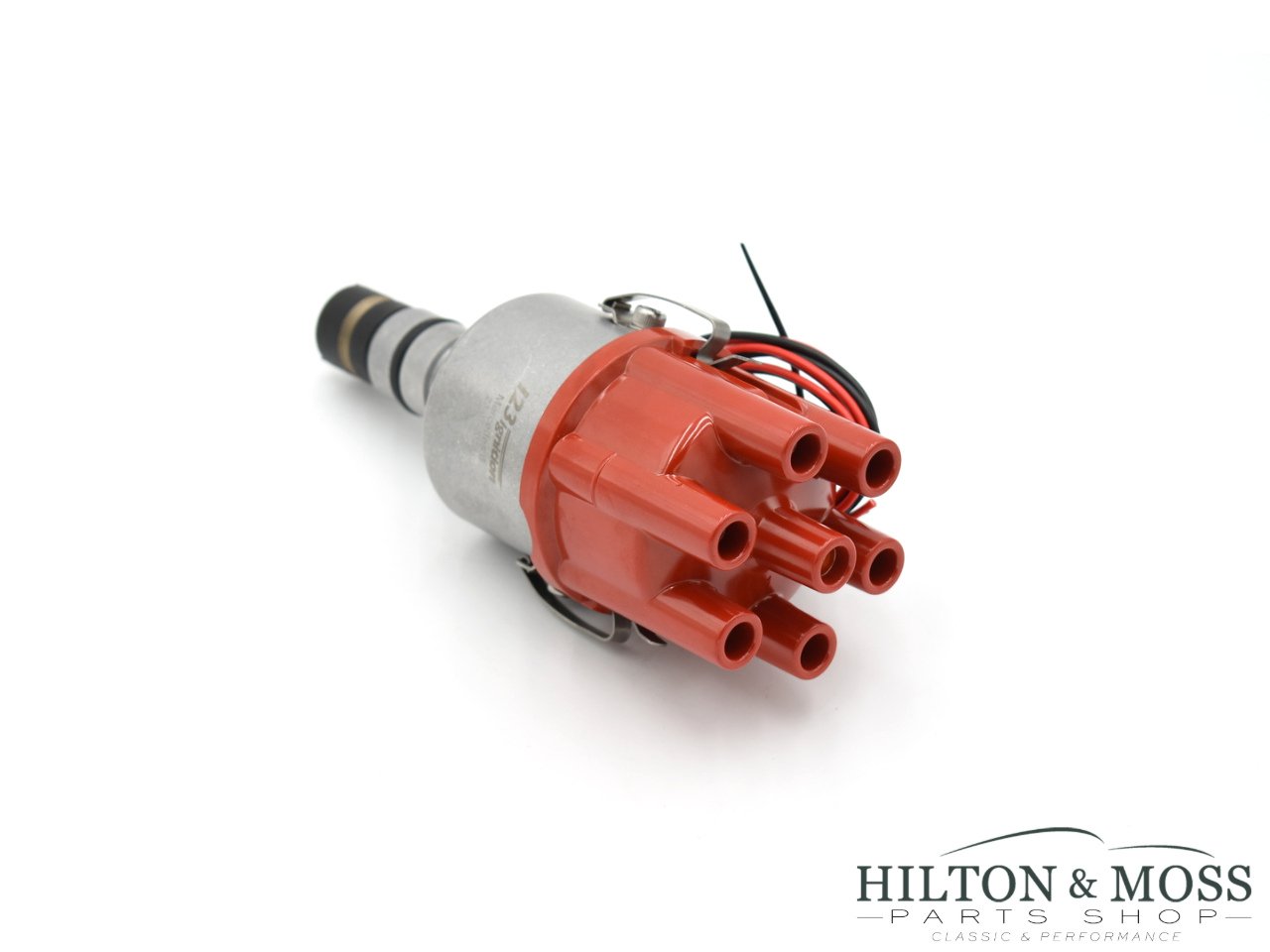

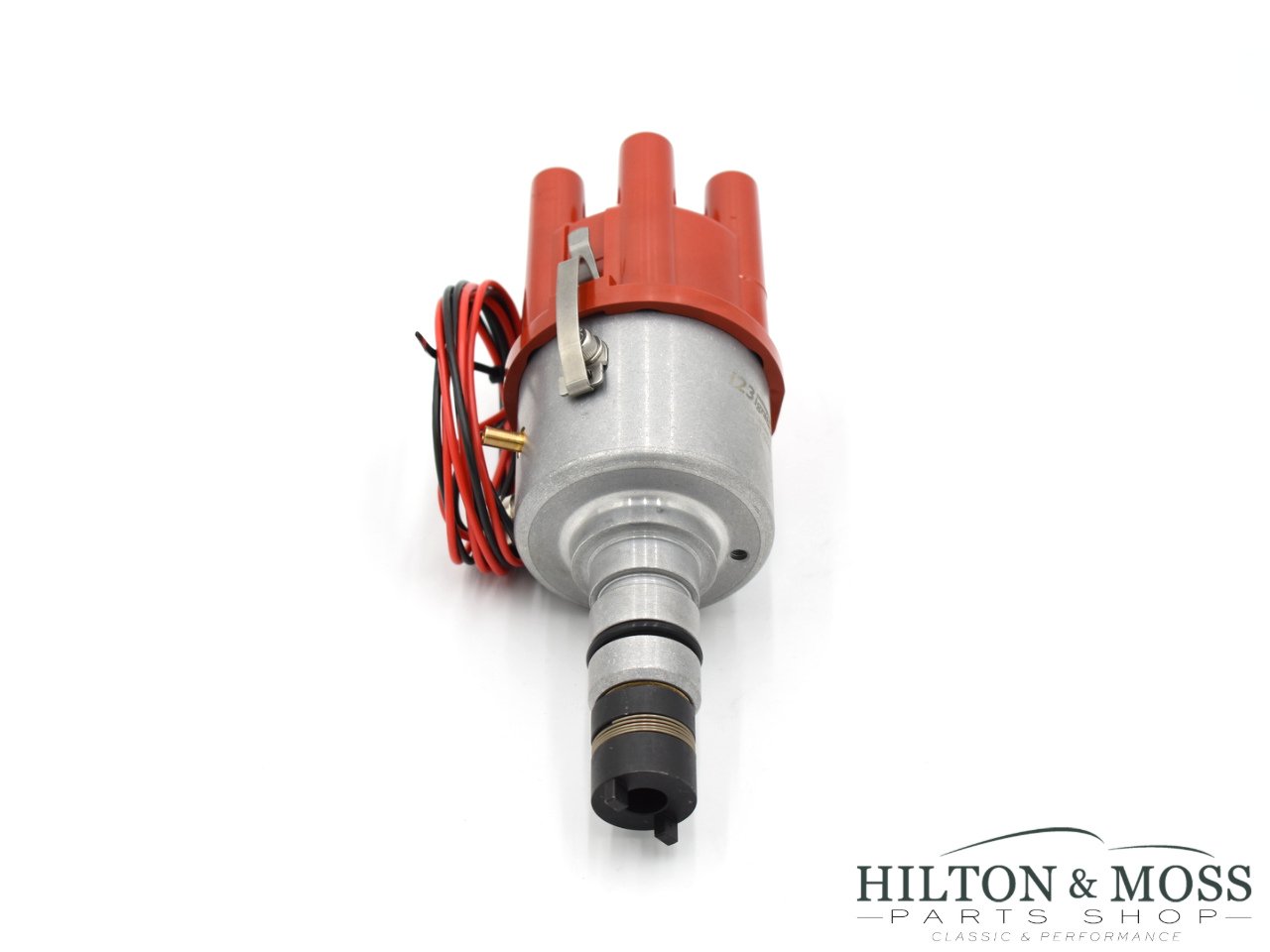

Mercedes W113 230SL / 250SL / 280SL Pagoda 123 Ignition Electronic Distributor
£318.86
Mercedes W113 230SL / 250SL / 280SL Pagoda 123 Ignition Electronic Distributor
SKU: 123\MERCEDES-6-R-V
£318.86
4 in stock
Mercedes W113 230SL / 250SL / 280SL Pagoda 123 Ignition Electronic Distributor
Description
Mercedes W113 230SL / 250SL / 280SL Pagoda 123 Ignition Electronic Distributor
SKU: 123\MERCEDES-6-R-V
Mercedes W113 230SL / 250SL / 280SL Pagoda 123 Ignition Electronic Distributor. This is the standard ‘Switch’ version, not the ‘Tune’ variant.
Improve the performance of your classic car with this highly reliable electronic ignition distributor.
The 123MERCEDES-6-R-V is designed for W108, W109, W110, W111, W112, W113, W114, W123 and W130 6-cyl. engines, in the Mercedes :
– 220
– 230, 230S, 230SL
– 250, 250SL, 250SE, 250CE,
– 280, 280S, 280SE, 280SL
– 300SE, 300SEL, 300SEb
Brand
Mercedes
Cylinders
6
Operating voltage
4-15V
Wires
Black: coil ‘-‘
,
Red: ignition key (battery 6V / 12V)
Model
Switch
Rotation direction
CW & CCW
Vacuum
Yes
RPM range
500-10.000 RPM
IE (D-jetronic support)
No
Environmental temperature
-30 – 100 °C
Cap type
Straight
Dwell
Constant current: fully automatic adaptive dwell
Coil charging time-out
After 1 second, coil current is turned off
Spark balancing
<0.5 degrees
Maximum advance
40 degrees crankshaft
Additional information
| Weight | 3.00000 kg |
|---|
