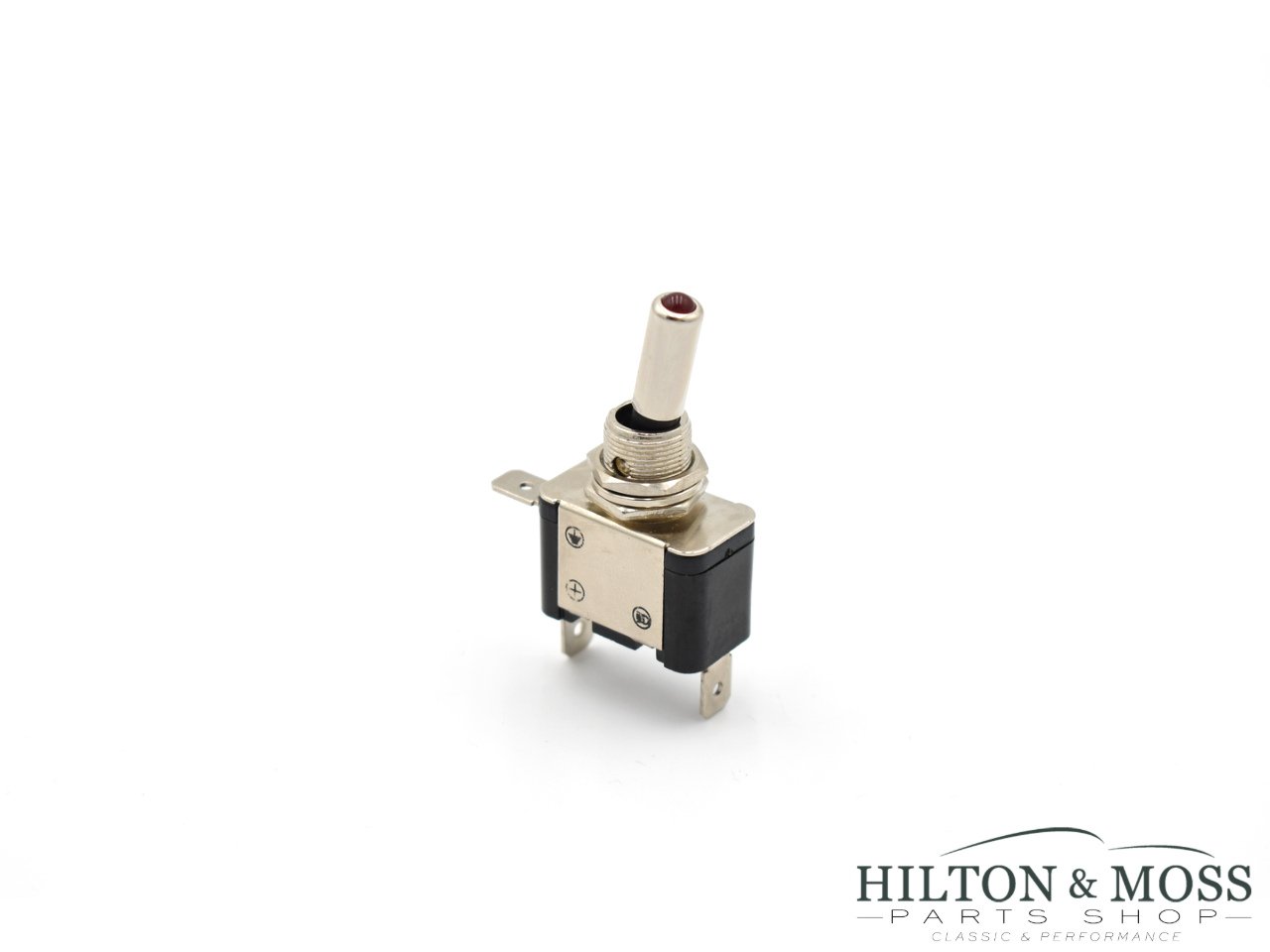

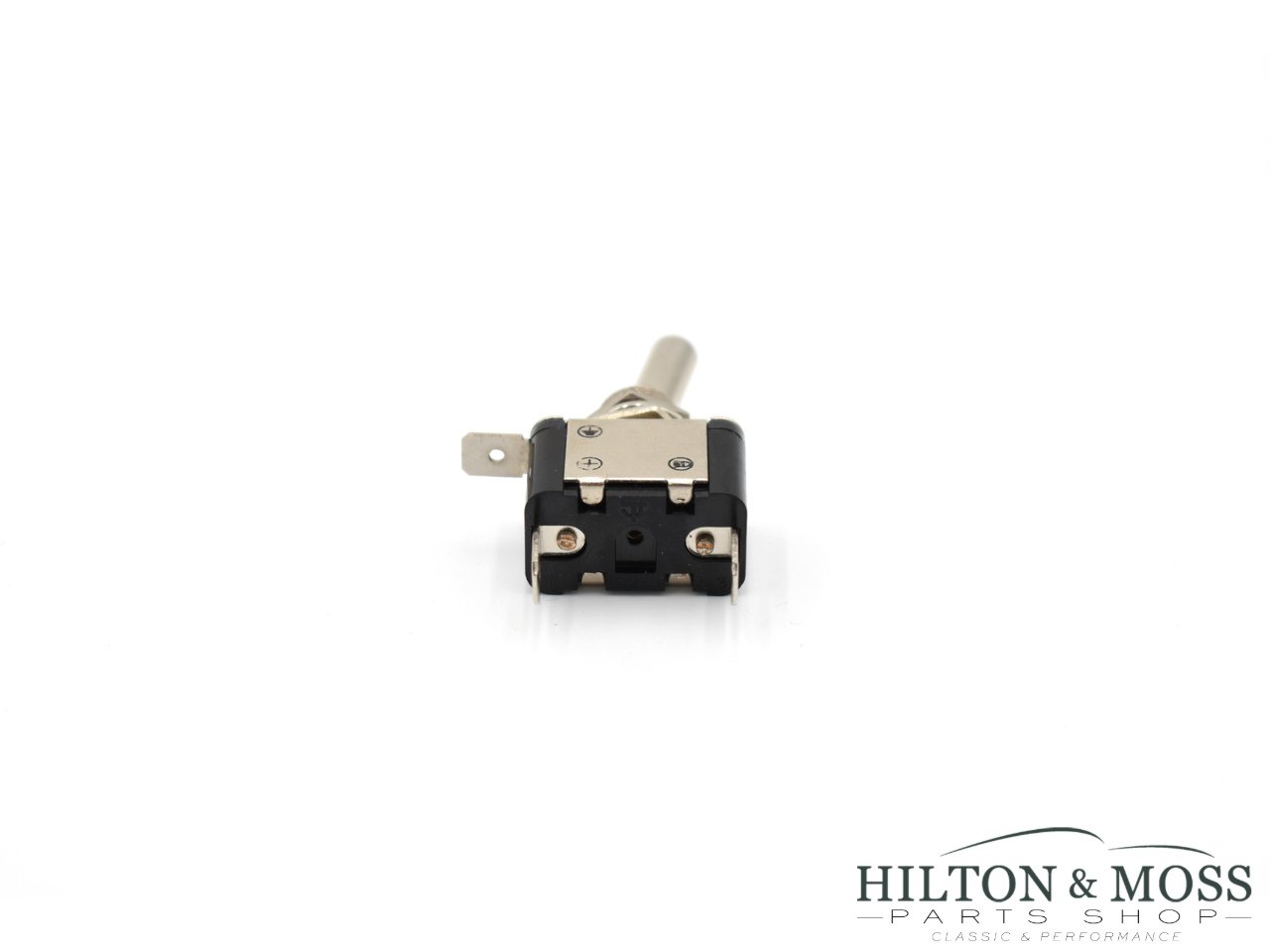

Red LED On-Off Toggle Switch

SKU: HMJ034

SPST toggle switch with a red LED tip that illuminates when the switch is in the ‘On’ position. The switch is suitable for panel mounting and can be used to run various accessories.

20A rating.
On-Off operation
SPST contacts
6.3mm quick connect terminals
LED requires 12VDC illumination
Panel cut-out diameter: 12mm
Dimensions: 51.4 x 16 x 28mm (Height x Width x Length)
Maximum Panel Thickness: 5mm
